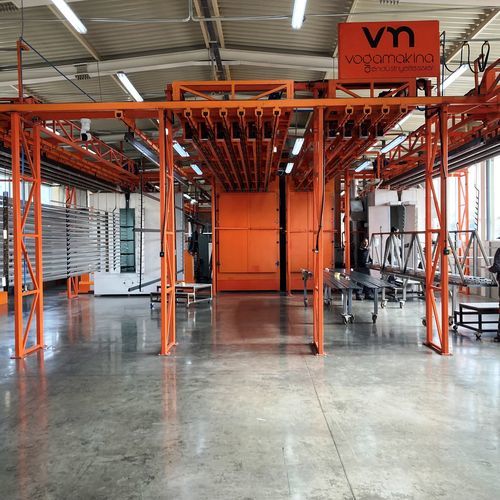

Manual powder coating line BTRANSFER

automaticcontinuous

TRANSFER TYPE POWDER COATING LINES The transfer type conveyor consists of a combination of conveyor rails without conveyor chain. The effective painting system is designed by our project department according to the existing workshop dimensions based on the product to be painted and daily quantities. The workpieces to be coated are loaded onto the bars to which the hanger trolleys are connected and the product is advanced by manually pulling or pushing the bars. Once the products are loaded on the conveyor, they do not tire the operator as they move on the conveyor until they reach the unloading point, so it is an efficient system. The movement of the bars can be automated at any point in the system, making the entire conveyor line a cost-effective alternative to power and free conveyors. C3 clearance bearings used in the hanger trolleys ensure smooth movement at high temperature inside the ovens. Coating plants with this conveyor system are generally used for powder coating of aluminum profiles, but can also be used for electrostatic powder coating, liquid painting or coating systems requiring different specifications for any other type of product. Automatic coating can be done in the painting system with the addition of a conveyor system over the powder or paint booth and by adding a reciprocator and automatic gun to the coating booth. The advantage of transfer conveyors is that a painting plant can be installed in workshops with limited or complex space. The transfer system can provide manual or fully automatic painting according to the project and work piece quantities.
