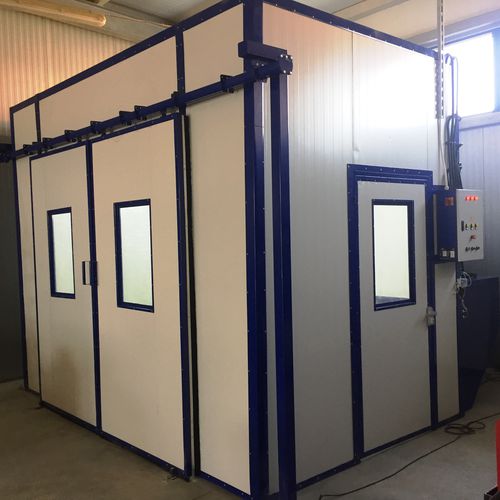

Enclosed spray booth VMCSB

dry filterwet paintpressure

Wall/roof material : 50mm sandwich panels, El 30 certified Insulation : 50mm of Rock wool, 50 kg/m³ density Metal basement : N/A Product entry door dimension : 1 set of manual sliding type door, plexiglass windowed, insulated Service door : 1 set of insulated door, plexiglass windowed Working temperature : Ambient temperature Lighting system : 36W led enclosed type durable lights POSITIVE PRESSURE SYSTEM Air inlet plenum : Mounted to the ceiling, EN779 M6 class filter Contamination control : By differential pressure switch Fresh-air fan : Sound insulated, 80dbA from 1 meter distance, speed controlled Heating system : N/A Pre-filters : G3 EXHAUST SYSTEM Exhaust air plenum : Mounted to the room ground level, with manual adjustable air vents Exhaust fan : 96dBA belt-pulley axial type, metal body, polyamide impeller FILTER WALL Body material : 1,5mm/2mm powder coated CRS sheet Filter type : 1st stage Overspray cardboard filter, 2nd and 3rd stages G3 paint stop filter Contamination control : By differential pressure switch HEATING SYSTEM: According to the demand CONTROL PANEL AND ELECTRICAL INSTALLATION The electrical control panel is mounted on the spray booth outside of it and the internal cabling has been made. Consist of panel elements with brands SCHNEIDER ELECTRIC and equivalent brands.
