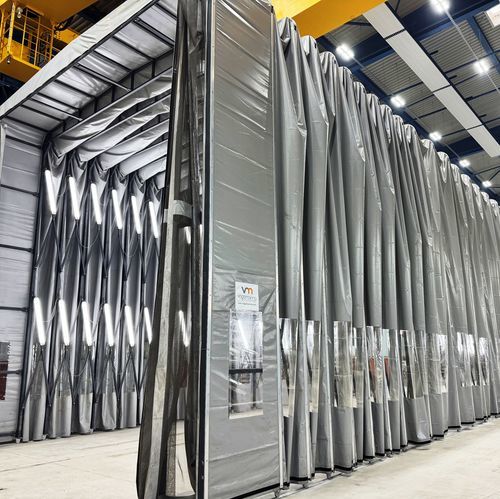

RETRACTABLE LIQUID PAINTING BOOTH Retractable spray booths are designed for manual painting application with side draft ventilation, for extraction of applied liquid paint overspray. The benefit of the retractable liquid spray booths is that saves space in the workshop. STRUCTURE It is manufactured from scissor system body, made of electro galvanized rectangular and circular tube structures and covered by PVC fabric material from outside. Moving system includes industrial wheels or rail & wheel system, recommended according to outdoor or indoor use and spray booth length. A curtain door is designed for closing the door during the painting application. VENTILATION SYSTEM Side draft ventilation provides high efficiency during painting application. The filter wall is manufactured modular from galvanized sheet metal, designed with shelves and emergency door at the two sides. Extraction fan is placed at the top of the filter wall, chosen with plastic propeller in order to prevent the risk of a spark caused by friction to its body during the operation. The electrical motor is placed out of the fan channel and there is no direct contact of the motor with the contaminated air. FILTRATION SYSTEM Extraction filter is used as 2 stages with 99,9% efficiency, placed at the side of the spray booth filter wall. There is a pre-filter at the door curtain that maintains natural airflow inlet during extraction fan is operating. Warning lamp at the control panel indicates service need when the filters get contaminated.
