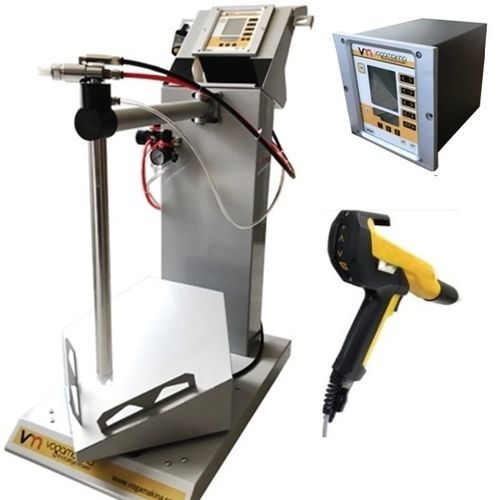

Aluminum profile powder coating machine VG1E-VN

with electrostatic gunwith digital controlmanual

VG1E-VN MANUAL FAST COLOR CHANGE TYPE POWDER COATING SYSTEM Designed for powder coating applications with frequent color changes throughout the day. The suction of powder paint is done directly from the powder paint box with the help of an injector, providing practical application. The powder suction pipe is specially designed to form a fluidized bed in the paint box. The device is on a moving trolley and the paint box is on a vibrating table. The system provides fast color change. TECHNICAL SPECIFICATIONS Input voltage : 220V 50Hz Air requirement : 350 lt/min Inlet pressure : 6 bar Vibration motor : 220V 25W Gross weight : 75 Kg VM G01 POWDER COATING GUN AND CONTROL UNIT The design of the gun and the handle provides ergonomic handling and does not tire the operator during coating application. The well-designed head assembly and nozzle ensure excellent polarization and homogeneous coating on surfaces during application. The high voltage cascade has a long service life, its tightness prevents contact with dust in the environment and minimizes the risks in this area. All gun parts are removable and can be easily replaced in case of breakdown and maintenance. TECHNICAL SPECIFICATIONS Gun Type : Corona System Polarization : Negative Stepped input voltage: 0-10.5V DC Output voltage : 100 kV Output current : 0 -150 μA Dust output (3.5 bar) : 500 g/min Protection class : IP 54 Voltage cable length : 5 m Dust hose length : 5 m Weapon weight (gross) : 450 g Operating temperature :-20-50°C Nozzle : Ø16-20-24mm deflector + Nozzle
