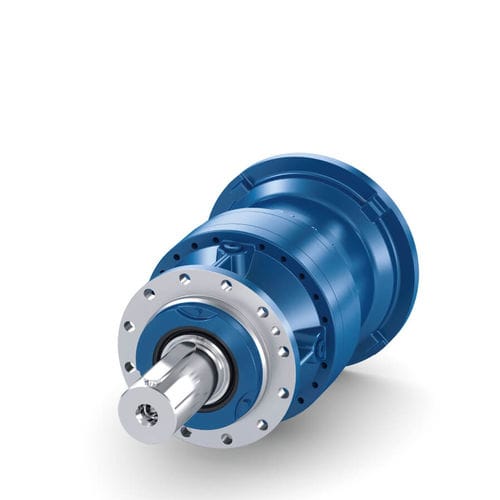

Planetary gearbox MPF coaxial200 - 500 Nm500 - 1000 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
- Configuration
- compact
- Applications
- shaft
- Rotational speed
Max.: 4,000 rad.min-1
(636.62 rpm)Min.: 0 rad.min-1
(0 rpm)- Backlash
Max.: 0.33 °
Min.: 0.17 °
- Gear ratio
Max.: 245 unit
Min.: 3.4 unit
Description
VOGEL planetary gearboxes are compact power packs for coaxial applications where higher torques are required in tight spaces. Users benefit from compact top-class drive technology with particularly high power densities and absolutely smooth running even at high speeds.
MPF
Coaxial gearbox with hollow shaft with shrink disc
Catalogs
Planetary gearboxes
80 Pages
Industrial gearboxes
164 Pages
