Rotary lobe pump IQ series

for wastewaterelectricself-priming

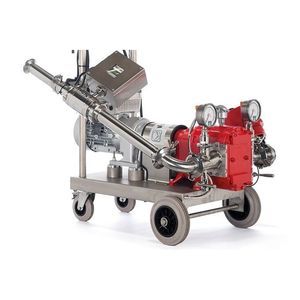

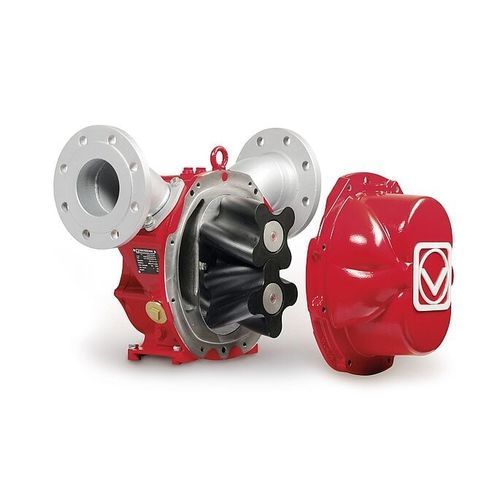

EASY TO USE ROTARY LOBE PUMP The easiest maintenance, rapid onsite service Quick, optimum access to the pumping elements Self-priming and resistant to dry running Easy and flexible to integrate THE ROTARY LOBE PUMP PRINCIPLE How Vogelsang rotary lobe pumps work The rotary lobe pump is a positive displacement pump. The pumping principle is based on two counter-rotating pumping elements, known as the rotary lobes. These are mounted on two synchronized shafts. The rotational movement of the lobes increases the volume of the pumping chamber on the suction side. This creates suction, which draws the medium into the rotary lobe pump. As the rotational movement continues, the medium is then enclosed in cavities between the rotary lobes and pump housing and it is issued on the discharge side by the pumping chambers as they reduce in size again; the rotary lobe pump conveys the medium directly. Due to their mirror-symmetrical design, rotary lobe pumps are independent of the direction of rotation and can pump in either direction without restriction. The HiFlo lobes developed in the 1990s operate pulsation-free, ensuring low-vibration and exceptionally gentle pumping. SERVICE OF THE IQ ROTARY LOBE PUMPS How to dismount an IQ pump Open the pumping chamber: Simply unfasten a few screws, remove the pump cover and you have free access to the rotary lobes. This makes it quick and easy to inspect both the lobes and the pump cover itself. If necessary, you can also replace the wear plate in the pump cover. Dismount the rotary lobes: Unfasten the strain bolts, remove the pressure discs on the lobes, place the puller on the lobes and dismount them.
