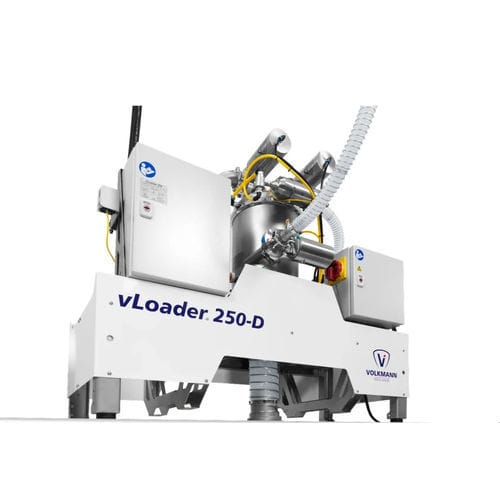

Fully-automatic filling machine vLoader 250

containerfor 3D printing powders

vLoader 250: automatic filling of 3D printers with metal powder The vLoader 250 supplies a 3D printer with metal powder automatically. The metal powder and the environment are optimally protected from each other while the continuous supply of the 3D printer is ensured in the best possible way. With the optional vDryer module, the metal powder can also be dried. The improved flowability of the dry metal powder has a positive effect on the quality of the printed components. The integrated vacuum conveyor governs the conveying of the metal powder into the system. The powder is transported through a pipeline or hose up to 25 meters long and with a height difference of up to 5 meters. With an intermittent mode of operation, the vLoader first fills its buffer container, and then empties it into the powder supply of the 3D printer. The vLoader can obtain the powder from a wide variety of sources. In a closed powder circuit, it is either a buffer reservoir (e.g. vHub 250) or a powder reprocessing system (e.g. PowTReX). But also other systems, such as a GloveBox or an IBC docking station (e.g. vDock) can be the initial material source. Manual extraction from a container is also possible. Advantages: • Automatic filling of the printer. Manual filling operations are eliminated. • Suitability for fully automated, unmanned production. • A safe powder supply to the 3D printer is ensured when connected to a large supply container. The risk of interruption or suspension of the printing process is significantly reduced. • Closed powder handling: better operator protection, and the powder cannot be contaminated. • Space-saving installation on top of the 3D printer
