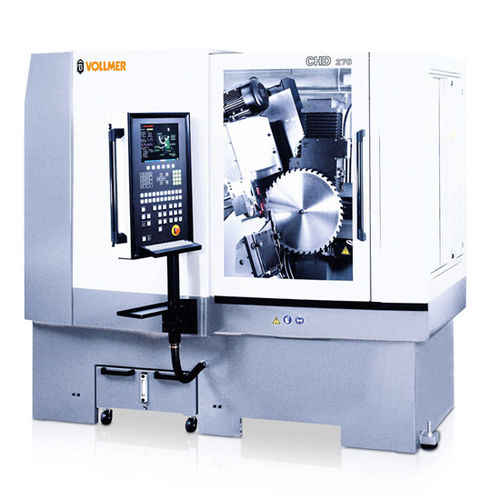

Vertical disc sharpening machine CHD 270

cutting toolautomaticCNC

CHD 270 – COMPLETE MACHINING ON TOOTH FACES AND TOOTH TOPS Sharpening machine with eight CNC-controlled axes and measuring equipment. For automatic machining of carbide-tipped circular saw blades with different diameters and tooth geometries on the tooth faces and tooth tops. Constant development of a superior machine concept for maximum precision when sharpening carbide-tipped circular saw blades. Fully CNC-controlled (eight CNC axes) including the feed system and the hook and clearance angle adjustment. With automatic measuring equipment. THE MACHINE CONCEPT The machine's design guarantees you excellent stability, takes up little space and makes for easy operation. With the CHD 270, the entire grinding unit is compactly and robustly mounted on a central main structure (monoblock design). This ensures a high level of precision and smooth running. Its advanced and highly ergonomic design makes the unit very easy to operate and to access for maintenance work on the control cabinet, coolant pump, pneumatic system and fire extinguishing device. THE CONCEPT FOR HIGHLY EFFICIENT AND PRECISE SHARPENING OF COMPLEX TOOTH GEOMETRIES IN ONE CYCLE Patented twin grinding wheel for complete machining without having to replace the grinding wheel Increased tooth cutting accuracy ensured by comprehensive tooth geometry measurement High performance due to high machining speed THE APPLICATION Maximum flexibility for all tooth shapes. The eight CNC-controlled axes combined with the VOLLMER PMC control enable the machine to be used for universal applications.
