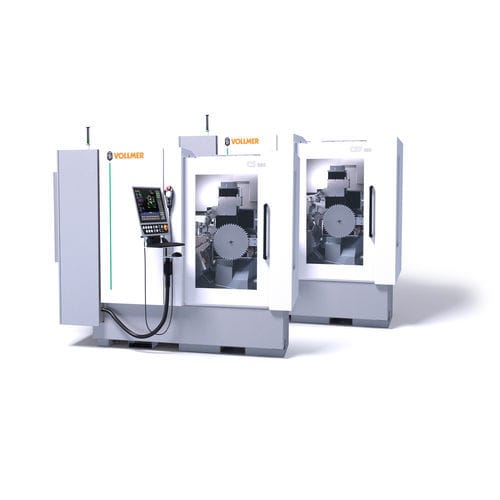

Vertical disc sharpening machine CS series
circular saw blade7-axis8-axis

Vertical disc sharpening machine - CS series  - VOLLMER WERKE Maschinenfabrik GmbH - circular saw blade / 7-axis / 8-axis
Vertical disc sharpening machine - CS series  - VOLLMER WERKE Maschinenfabrik GmbH - circular saw blade / 7-axis / 8-axis
Vertical disc sharpening machine - CS series  - VOLLMER WERKE Maschinenfabrik GmbH - circular saw blade / 7-axis / 8-axis - image - 2
Vertical disc sharpening machine - CS series  - VOLLMER WERKE Maschinenfabrik GmbH - circular saw blade / 7-axis / 8-axis - image - 3
Vertical disc sharpening machine - CS series  - VOLLMER WERKE Maschinenfabrik GmbH - circular saw blade / 7-axis / 8-axis - image - 4
Vertical disc sharpening machine - CS series  - VOLLMER WERKE Maschinenfabrik GmbH - circular saw blade / 7-axis / 8-axis - image - 5
Vertical disc sharpening machine - CS series  - VOLLMER WERKE Maschinenfabrik GmbH - circular saw blade / 7-axis / 8-axis - image - 6
Add to favorites
Compare this product


Characteristics

Type
vertical disc
Applications
circular saw blade
Number of axes
7-axis, 8-axis
Other characteristics
high-performance, with touch screen

Description

EXCELLENT STABILITY. MAXIMUM GRINDING PERFORMANCE. OUTSTANDING GRINDING RESULTS. FULLY CN-CONTROLLED The CS 860 and CSF 860 are two fully CN-controlled machines with 8-axis or 7-axis kinematics. DIAMETER Both machines are designed for circular saw blades with a diameter of 80 to 860 mm. FULLY AUTOMATED SEQUENCES Both machines feature measuring equipment for fully automated set-up and work processes and numerous additional units for specific applications. AUTOMATIC LOADING For maximum efficiency, up to three machines can be loaded automatically in conjunction with the VOLLMER ND handling system. FOR ALL TOOTH GEOMETRIES All conceivable surfaces and machining combinations are possible. In a single cycle. It doesn't get more flexible than this. MADE FOR YOU. FOR ALL APPLICATIONS Processing solid timber Further processing of timber Processing aluminium and plastic Machining composites Processing metal Processing minerals AND FOR YOUR APPLICATIONS FOR TOOL MANUFACTURERS For everyone producing, fitting and supplying carbide-tipped circular saw blades. FOR SHARPENING SERVICES For service companies that process orders quickly and flexibly. FOR SAW MILLS For saw mills with a high daily sharpening workload. FOR END USERS AND SERVICE PROVIDERS For service providers offering sawing services or manufacturers of furniture, floors, panels or insulating materials.
