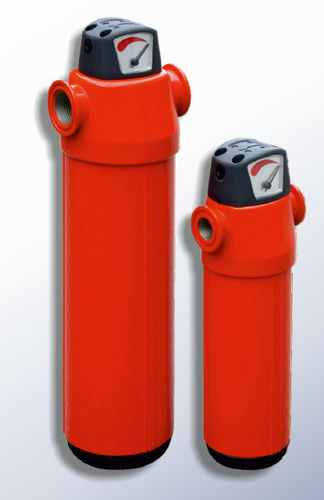

Compressed air filter G series

basketpressure

VORTEX Compressed Air Filters Vortex Compressed Air Filters hâve been designed to answer the current requirements of compressed air filter world. It enables a more comfortable usage for end user a better endurance, higher efficency with lower pressure drop and more port size options. Filtration Due to the usage of deep pleating technique filtration area has increased remarkably which leads to a better filtration and higher dirt holding capacity. Vortex Compressed Air Filters hâve been designed to remove airbone contamination in a compressed air stream, delivering energy efficient operation and reliable performance. Features The air filters hâve 4 ranges of efficiencies, removing down to 0.01 micron at up to 235 psi (16barg) -1/4" to 3" N P T / B S P pipe sizes. A protected auto float drain (2mm orifice) is standard for reliable removal of liquid contaminants. Zero-porosity aluminum and durable epoxy powder-coat finish, along with a corrosion-résistant internai coating gives long service life. Filter combinations are configured to meet spécifie application requirements Filters comply with PED and perform as per related I SO 8573 standards. These filters may be equipped with differential pressure gauges for easy maintenance and energy efficiency.Vortex compressed air filters are always recommended with this System.
