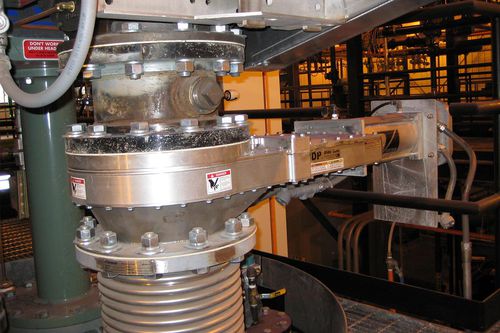

Gate valve HDPV2

cast aluminumfor abrasive fluidshigh-pressure

The HDPV2 Gate was originally developed to isolate silos in applications where high pressure aeration is used to fluidize powder discharge. Over time, the HDPV2 Gate has been redesigned and modified for greater application versatility. Ideal application: Higher-pressure applications when handling non-abrasive to moderately abrasive powders, pellets or granules. Key Features Externally adjustable blade for in-line maintenance Patented “rising blade” action to positively seal against high pressures Replaceable parts for in-line maintenance and prolonged service life End seal displacement pocket to prevent material packing upon closure Unobstructed opening for unrestricted material flow and to maintain convey line pressures Optional air purge assembly keeps fine materials in the flow stream, to prevent them from collecting in the gate's body No pinch points or exposed moving point for safety No internal cavities to prevent wedging, lodging & spoilage Lifting lugs for ease of installation Tech Specs Conveyance Type Gravity flow, dilute phase and dense phase pneumatic conveying applications up to 75 psig | 5barg | +0.5 MPa, depending on gate size. Can be used in pressure or vacuum systems. Materials Handled Non-abrasive to moderately abrasive powders, pellets and granules. Well-suited for handling sticky and/or corrosive materials, and for wash-down. Opening Available in round sizes. Overall Height 8 – 9 in | 200 – 230 mm Weight 75 – 380 lb | 35 – 172 kg Flange Options ANSI #125/150, DIN PN10 Custom flanges are available Material Contact Options 304 or 316L stainless steel, carbon steel O-Ring Seal Construction Silicone
