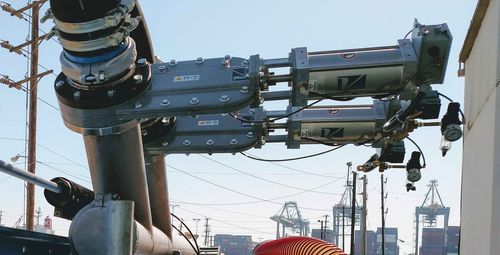

Gate valve TPVXX

shut-offcast ironfor bulk materials

The Titan Pressure Valve's unique "rising blade" is designed to close into an end seat. This provides an optimal seal of high pressures and a positive material shut-off. ‍ Ideal application: Higher-temperature and/or higher-pressure applications handling highly abrasive dry bulk solid materials. The Vortex® Titan Pressure Valve™ often replaces deficient slide gates and butterfly valves used in such environments. Key Features Replaceable packing gland for in-line maintenance Spring-loaded blade guides for positive gate closure Air gap between the valve body and actuator to reduce heat transfer into the cylinder Beveled blade prevents material packing into the end seat Positive seal of materials & dusts across the closed blade and to atmosphere Blade & seats constructed from 440 C stainless steel(Rockwell Hardness 60 C) Ductile iron housing for operator safety in high temperature applications For temperature resistance, constructed without elastomers or polymers Narrow profile for limited space applications Tech Specs Opening Available in round sizes. Overall Height 2 – 3 in | 50 – 75 mm Weight 45 – 250 lb | 20 – 115 kg Flange Options ANSI #125/150, DIN PN10 Material Temperatures Up to 660° F | 350° C Body/Frame Construction Cast ductile iron Material Contact Construction 440C stainless steel (Rockwell Hardness 60 C) & ductile iron Seat Construction 440C stainless steel (Rockwell Hardness 60 C) Drive/Actuation Double-acting air cylinder Position Confirmation Magnetic reed, proximity or mechanical limit switches Material Flow Controls AVP - Learn More > Required Accessories Sealed body air purge
