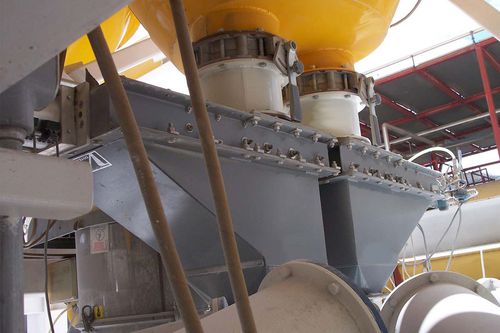

Gate valve AXX

with handwheelstainless steelcarbon steel

The Vortex® Aggregate Gate™ is designed to meet demanding applications handling material such as sand, gravel, whole grains, and coal. The narrow profile, choice of actuators, and custom rectangular sizes make this slide gate adaptable to most existing installations. Optional inlet or outlet flanges and dust return pans are available. Ideal application: Similar in design to the Vortex® Titan Slide Gate™ but vastly different in scope, the Vortex® Aggregate Gate™ is ideal for handling larger-size, abrasive dry bulk solid materials in applications where fine materials and dusts are of less concern. Key Features Seals are protected by a series of deflectors and retainers to reduce wear and extend service life Removable bonnet cover for easy inspection of valve body Displacement pocket prevents wedging and packing into an end seal Optional return pan redirects migrant materials in the bonnet area back into the material flow Constructed from specialized metals and polymers for application-specific durability and abrasion resistance Modifications allow the gate to be used in higher temperature applications up to 550°F | 290°C Optional side-mounted handwheel with rack & pinion gearing for quick, manual actuation Blade constructed from abrasion-resistant steel Replaceable abrasion-resistant liners for durability and prolonged service life Opening Available in square or rectangular sizes. Round transition options are available Overall Height 4 in | 110 mm Weight 85 – 395 lb | 40 – 180 kg Flange Options Standard flange Custom flanges are available Material Contact Options Carbon steel, 304 stainless steel, 235 BHN abrasion-resistant steel, SAE 660 bronze
