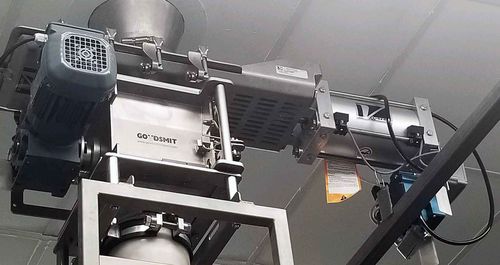

Gate valve QCXX

pneumaticstainless steelfor bulk materials

The Vortex Quick Clean Gate is the first slide gate to be USDA Dairy Standard-accepted. It can be disassembled and reassembled in a matter of minutes – without using any tools. Ideal application: Sanitary dry bulk solid material handling applications that require frequent “Clean out of Place.” The Vortex® Quick Clean Gate™ can be washed down daily, during shift change, or on any other regular cleaning or sanitation schedule. This eliminates potential for microorganisms, spoilage and bacterial growth. Conveyance Type Gravity flow only. Contact us to discuss suitability for use in low pressure/vacuum applications. Opening Available in round sizes. Overall Height 4 3/8in | 111 mm Weight 30 – 110 lb | 15 – 50 kg Connection Options Ferrule-type fittings, tube stubs, thru-bolt, ANSI #125/150 Custom flanges are available Material Contact Options 304 or 316L stainless steel Pressure Plate Construction PET & silicone rubber Seals should be hand-cleaned in treatment solutions not exceeding 180°F | 80°C Load Seal Construction Silicone rubber Drive/Actuation Double-acting air cylinder Cylinder Construction Aluminum Cylinder Shaft, Barrel Nuts & Tie Rod Construction 303 stainless steel Position Confirmation Magnetic reed switches
