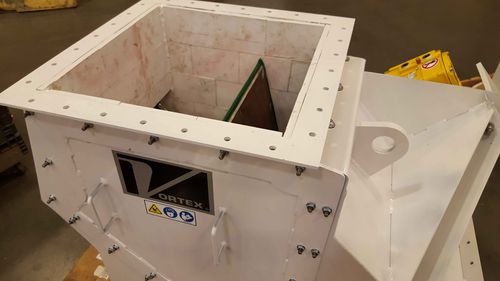

Diverter valve for heavy-duty applications ZXX

for dry bulk materialsgravity

The Vortex® Titan Lined Diverter™ offers in-line maintenance features, durable materials of construction, reduced downtime, prolonged service life and many other significant advantages over alternative flap diverters. Ideal application: Used to divert heavy-duty and/or abrasive dry bulk solid materials from one source toward two or three destinations in gravity-fed applications. Key Features Replaceable abrasion-resistant liners protect against wear and abrasion to prolong service life Removable access panel for in-line inspection and maintenance Robust blade seal(s) maintain a positive seal of materials/dust-tight seal across the closed chute(s), to prevent material leakage into the opposite chute(s) Flange and outlet chute angle options to match up with pre-existing footprints Dust-tight to atmosphere Recessed blade(s) to protect the blade(s) and seal(s) from abrasion No pinch points or exposed moving point for safety Diverter body constructed from carbon steel with replaceable abrasion-resistant liners. Optional “A-style” blade(s) to protect the blade shaft(s) from wear and prevent material “ski jumping Conveyance Type Gravity flow only Standard Sizes 16 – 36 in | 400 – 900mm Contact us for custom sizes Inlet & Outlets Available in square or rectangular sizes. Round transition options are available Overall Height 25 – 75 in | 650 – 1,905 mm Weight 140 – 1,265 lb | 65 – 575 kg Outlet Angle Options 30° or 45° from center Contact us for custom angles Flange Options Standard flange, ANSI #125/150, DIN PN10 Custom flanges are available Material Temperatures 250°F | 120°C for standard gate, with modifications that allow up to 400°F | 205°C
