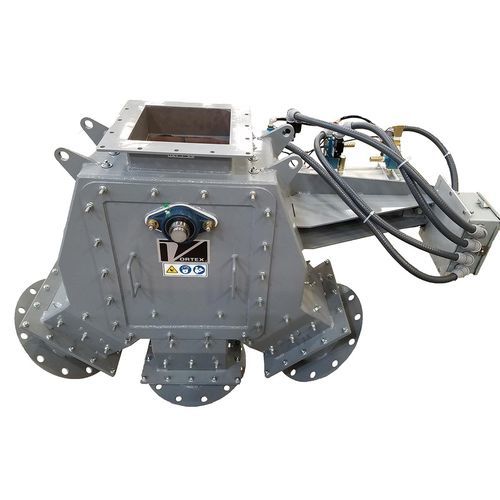

Diverter valve for heavy-duty applications PCXX

for dry bulk materialsgravity

The Vortex® Pivoting Chute Diverter™ offers in-line maintenance features, durable materials of construction, reduced downtime, prolonged service life and many other significant advantages over flap diverters and bucket diverters. Ideal application: Used to divert heavy-duty and/or abrasive dry bulk solid materials from one source toward two or three destinations in gravity-fed applications. Key Features Can be used to split flow Removable access panel for in-line inspection and maintenance Inlet chute to better direct material flow through the pivoting chute Unobstructed chutes for unrestricted material movement Replaceable parts to prolong service life Replaceable wear and containment bar protects against abrasion and hinders material migration into the opposite outlet chute(s) No pinch points or exposed moving point for safety No internal cavities to prevent wedging, lodging & spoilage Designed for wear and abrasion resistance Conveyance Type Gravity flow only Standard Sizes 6 – 24 in | 150 – 600 mm Contact us for custom sizes Inlet & Outlets Available in square or rectangular sizes. Round transition options are available Overall Height 29 1/2 – 80 in | 750 – 2,030 mm Weight 425 – 3,600 lb | 195 – 1,635 kg Outlet Angle Options 30° or 45° from center Contact us for custom angles Flange Options Standard flange, ANSI #125/150, DIN PN10 Custom flanges are available Material Temperatures Up to 400°F | 205°C Body/Frame Construction Carbon steel Chute Options 400 BHN abrasion-resistant steel, chromium carbide
