Powder diverter valve DXX

for dry bulk materials

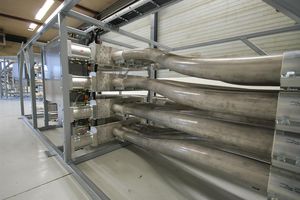

The Vortex® Fill Pass Diverter™ provides a versatile and reliable solution for filling one or more in-line weigh hoppers when material is conveyed pneumatically through a closed loop system. The design of the Fill Pass Diverter utilizes spread hopper inlet/outlet stacks for improved air and material separation reducing fill time and down line material carryover. Ideal application: Filling one or more tanks or scale hoppers when pneumatically conveying dry bulk solid materials via a closed loop system. Vortex® Fill Pass Diverters™ are stackable so that several convey lines can be compacted to route toward a common source. Key Features Shimming system for in-line maintenance The diverter’s spread stack offers better separation of air and materials Material deflector to direct material flow and minimize material carryover Machined, full-bore orifices for unobstructed material flow and to maintain convey line pressures Double-acting air cylinder provides instant response to actuation commands, for accurate scaling into hoppers “Scissoring” action reduces seal wear and minimizes material shearing Seals off the closed port(s) for a positive material shut-off Positive seal of materials/dust-tight seal across the closed line(s) and to atmosphere No pinch points or exposed moving parts Conveyance Type Dilute phase pneumatic conveying applications. Can handle dierential pressures up to 15 psig | 1 barg | 0.1 MPa, depending on gate size. Can be used in pressure or vacuum systems. Standard Sizes 2 – 6 in | 50 – 150 mm ID & OD diameters are available. Schedule pipe sizes are also available. Inlet & Outlets Available in round sizes. Overall Height 7 – 13 in | 90 – 165 mm
