Bending beam load cell 9102

beam typestrain gaugeweighing

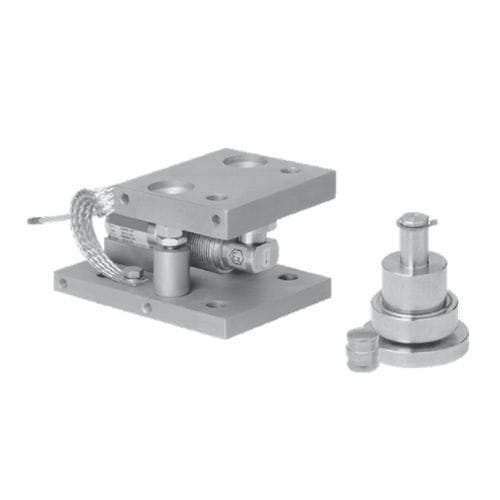

The 9102 self-aligning silo mount, combined with the 9102 load cell family, provides high accuracy weighing assemblies suitable for process control, batch weighing, silo/hopper, and belt scale applications. The 9102 foot assembly is an ideal solution for medium capacity belt, pallet, and platform scales. The 9102 mount and foot are based on a rocker pin design, combining excellent load introduction to the transducer with an overall low profile. Hardened components are used at all load bearing surfaces. The stainless steel construction guarantees long-term reliability, even in the harshest environments. Features: • Hardened components at all bearing surfaces • Rocker pin load introduction • Built-in horizontal movement control and lift-off • protection • Load cell (re)placement after installation of the mount • Optional • Stainless steel or nickel-plated steel versions available • Stay rod assembly Applications • Process control • Batch weighing • Silo/hopper weighing • Belt scale weighing
