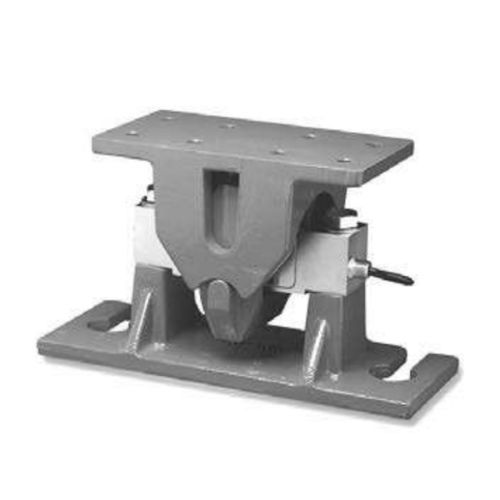

Stainless steel weigh module 65058-TSA

weighingfor weighbridges

The 65058-TSA is a high capacity truck scale weighing assembly. This product is designed to simplify the installation of the 65058 load cell into a certified Legal-for-Trade high capacity weigh bridge. Unilink™ floating suspension allows controlled floating of the scale deck, providing a reliable and accurate weighing system. The load cell is nickel plated or stainless steel and sealed to IP67 standards, assuring reliability. The mount assembly is provided with a primer coat finish to simplify the manufacture of the scale. This weighing assembly is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments. This weighing assembly is certified for Legal-for-Trade applications by both American NTEP and International OIML standards. Features: • Rated capacities of 10,000 to 75,000 pounds • High quality cast components • Unilink™ “floating” suspension system allows controlled floating of the scale deck • Incorporates model 65058 double-ended shear beam load cells • Sensorgage™ sealed to IP67 standards • Trade certified load cells for NTEP Class IIIL: 10000 divisions; Class III: 5000 divisions available • Factory Mutual System Approved for Classes I, II, III; • Divisions 1 and 2; Groups A through G. • Also, non-incendive ratings (No barriers!) • Optional • Optional load equalizer pads available • Stainless steel version available Applications • Truck scales • Railroad track scales • “Legal-for-Trade” tank, bin, and hopper weighing
