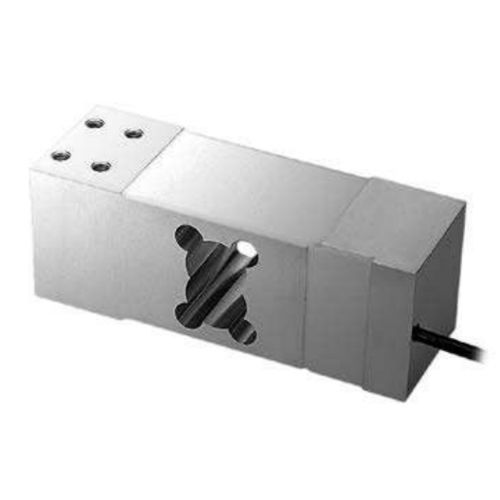

Off-center load cell LOC/LOCL
shear beamstrain gaugeweighing

off-center load cell
off-center load cell
off-center load cell
Add to favorites
Compare this product


Characteristics

Type
shear beam
Form
off-center
Technology
strain gauge
Applications
weighing
Other characteristics
OIML, aluminum, NTEP, anodized aluminum, cost-effective, IP66
Rated load

Max.: 1,000 kg
(2,204.62 lb)

Min.: 5 kg
(11.02 lb)

Length

150 mm, 174 mm, 191 mm
(5.906 in, 6.85 in, 7.52 in)

Height

39.5 mm, 65 mm, 75 mm
(1.56 in, 2.56 in, 2.95 in)

Description

• Cost-effective load cell for scales of simple construction • Anodized aluminum alloy • Platform size: 16” x 24”/40 cm x 60 cm • Optional: • FM approval available • Stainless Steel version available • IECEx approval available Applications • Platform scales (single load cell) • Packaging machines • Dosing/filling • Belt scales/conveyor scales • In-motion check weigher LOC is a low profile single-point load cell designed for platform scales and hanging scales. It is a cost-effective load cell for scales of simple construction. LOC is constructed of anodized aluminum, and is environmentally sealed up to IP66 levels providing excellent protection against moisture and humidity.
