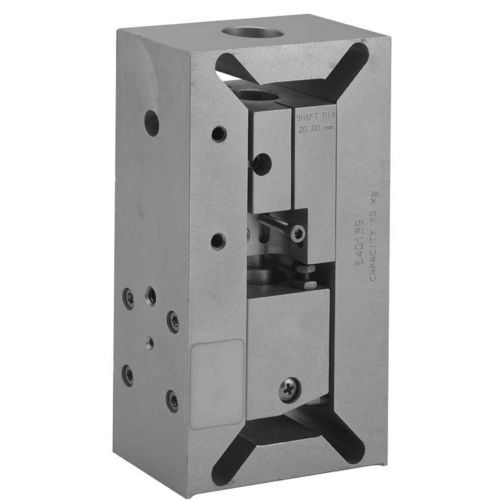

Tension/compression load cell 1410

block typeanalogweighing

• The first and only load cell specifically designed for use in rotary filling machines • Short settling times • High resistance to side loads • Effective isolation of base vibrations • Centrifugal forces do not affect accuracy • Two mounting options Applications • Rotary filling machines Model 1410 represents a radical new concept in load cell design, which alleviates many of the problems encountered when conventional load cells are used in rotary weighing machines. Due to a patented damping system, typical settling times of 700 ms are dramatically reduced to less than 300 ms(depending upon conditions), significantly reducing cycle times and increasing throughput capabilities. Centrifugal forces are handled in such away that their effect on output is very small. For example, tested up to 20 rpm, total dynamic error amounted to less than 0.2 gram per kg. Also the Model 1410 provides excellent isolation of base vibrations. Both features enable use of higher machine speeds without loss of accuracy. The uniquely rugged construction of the Model 1410 is very resistant to side loads and can therefore withstand bottle jams and other mishaps.
