Low-pass electronic filter DV-704A

passiveEMIfor DC/DC converters

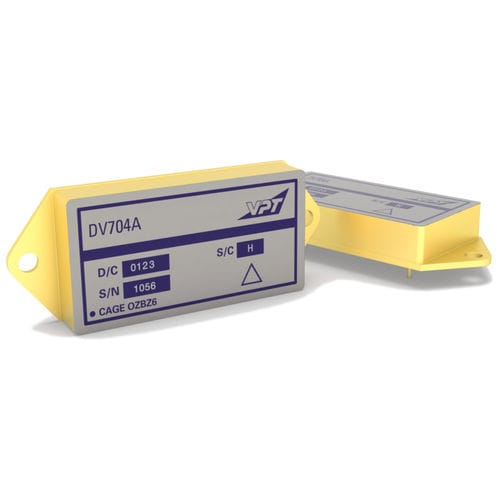

The DV-704A is a combined hybrid EMI filter and voltage spike protection module that is operable over the full military (-55 °C to +125 °C) temperature range with no power derating. The DV-704A EMI filter is designed to be used with VPT’s DVSA, DVHF, DVTR, and DVFL series DC-DC converters to comply with the surge requirements of MIL-STD-704A, B, C, and D with 40 watts maximum output power. This device also reduces the reflected noise of the DC-DC converters to meet MIL-STD-461C CE03 and MIL-STD-461D CE102 limits. It also protects the DC-DC converters against the voltage spikes specified in MIL-STD-461C CS06 and conducted susceptibility in MIL-STD-461C CS01 and CS02. These filters are designed and manufactured in a facility qualified to ISO 9001 and certified to MIL-PRF-38534 and MIL-STD-883. Features: For use with DVTR, DVHF, DVSA, DVFL Series DC-DC converters 0V to 40V input range with 600V transient protection Inrush current limit and soft start 2A max output current 45dB noise rejection Low profile (.405 inches) and light weight (50g) hermetic package Full performance over -55° C to +125° C military temperature range Compliances and Certifications: MIL-PRF-38534 Class H and Class K certified manufacturing facility MIL-STD-704A, B, C, and D surge limits DO-160 ISO-9001 MIL-STD-883 military and space environmental screening available MIL-STD-461 Revisions C, D, E, and F requirements for conducted emissions MIL-STD-461 Revisions C,D, E, and F requirements for conducted susceptibility as detailed in the Application Note, MIL-STD-461 Compliance for VPT DC-DC Converters and EMI Filters.
