Signal preamplifier VSI+
measuringprecision

Signal preamplifier - VSI+ - VSE Volumentechnik GmbH - measuring / precision
Signal preamplifier - VSI+ - VSE Volumentechnik GmbH - measuring / precision
Add to favorites
Compare this product


Characteristics

Type
signal
Secondary function
measuring
Other characteristics
precision
Voltage

Min.: 10 V

Max.: 28 V

Current

30 mA, 65 mA, 200 mA

Frequency

50 Hz

Description

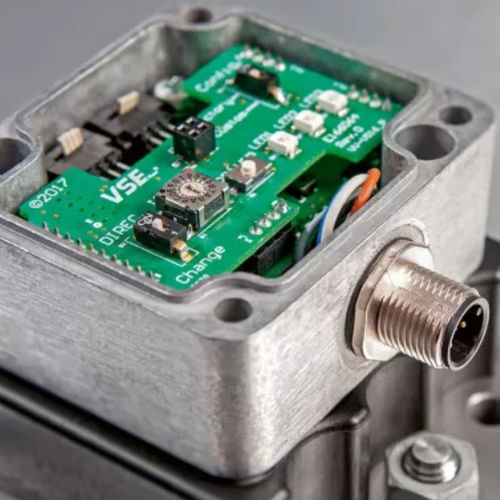

For precise and accurate flow and volume measurements with as high a resolution as possible, VSE has developed the optional VSI pre-amplifier. The integrated electronics of the VSI produces greatly improved signal quality with harmonic pulse widths. This means that more consistent and vibration-free measurements can be achieved. A switchable A/B-90° offset permits a direction change during commissioning. A separate direction signal also provides additional information for single channel evaluations, for example. Information can be read off quickly and easily using the LED status display. In addition, the interpolation factor has been increased by two IPF factors (24 and 32). The replaceable system means that existing systems can be easily upgraded or expanded and standardised. An integrated embedded system permits greater flexibility, meaning that individual custom solutions can also be realised. Applications Test benches for servo valves Gearbox test benches High precision leak measurements High precision rapid controls
