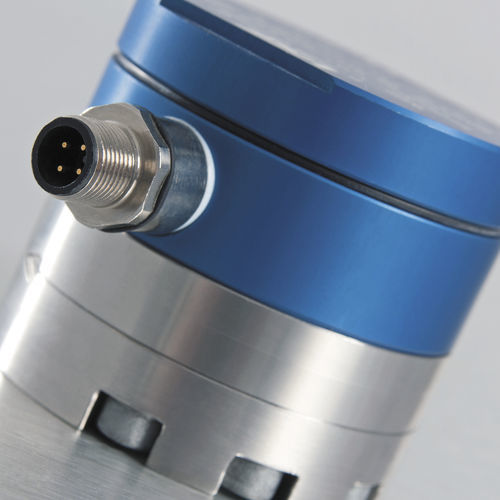

Gear flow meter VHM positive displacementfor biodieselfor chemicals
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Type
- positive displacement
- Fluid
- for biodiesel, for chemicals, for fuel, for acids, for conductive liquids, for corrosive fluids, for adhesives, for paint, for aggressive media, for abrasive fluids, coolant, for refrigerant fluids, for ink
- Material
- stainless steel, titanium
- Communication
- 4-20 mA, RS485, analog output, with pulse output, RS-232, IO-Link
- Protection level
- explosion-proof
- Applications
- industrial, for the pharmaceutical industry, for low flow rates, for medical applications, for the petrochemical industry, for biotechnology, for filling applications, for low-density materials, for high-density materials, for pumping applications, for high flow rates, for dosing, for corrosive environments, for cryogenic applications, laboratory, for hydraulic applications, for the oil and gas industry, for harsh environments, high-pressure, for test benches, for the semiconductor industry
- Other characteristics
- precision, with display, with data logger, custom, two-sensor
- Volumetric flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 20 l/min
(5.2834 us gal/min)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 250 bar
(3,625.94 psi)- Precision
0.1 %, 0.5 %
- Repeatibility
0.5 %
Description
Our VHM series was developed in particular for the high precision measurement of abrasive and poorly lubricating media. The gear flow meters work in accordance with the displacement principle and are suitable for a variety of fluids.
Each tooth generates a pulse when it passes the contactless signal pick-up system in accordance with the carrier frequency principle. The VHM flow meters are available with single, double and quad resolution and signal output with NPN or PNP modes.
The flow meters are also dead space-optimised for (flush-friendly) usage in the painting industry.
Applications
Inks
Paint
Chemical technology
Pharmaceutical industry
2-C systems
Petrochemicals
Multi-component painting systems
Advantages of the VHM gear flow meters
For a variety of fluids, in particular abrasive and poorly lubricating media
Different signal resolutions (single, double, quad)
Dead space-optimised for use in the painting industry
Best surface finish for flushability
Catalogs
VHM gear flow meter
16 Pages
VSE Flow measurement technology
30 Pages
VSE EF ECOFLOW gear flow meter
12 Pages
