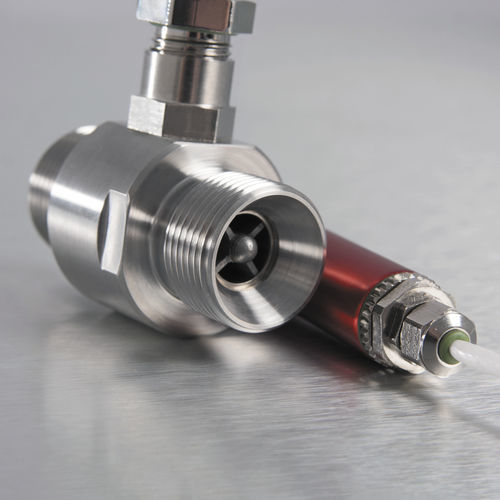

Turbine flow meter VTR volumefor waterfor fuel
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Type
- volume
- Fluid
- for water, for fuel, for hot water, coolant
- Material
- stainless steel
- Communication
- 4-20 mA, RS485, analog output, with pulse output, RS-232, IO-Link
- Protection level
- IP64
- Applications
- industrial, for the pharmaceutical industry, for low flow rates, for water treatment, for high-density materials, for the petrochemical industry, for high flow rates, for dosing, laboratory, for biotechnology, for the oil and gas industry, for low-density materials, for pumping applications, for cryogenic applications, for medical applications, for test benches
- Other characteristics
- precision, with display, with data logger
- Volumetric flow rate
Max.: 4,500 m³/h
(158,916.0002 ft³/h)Min.: 0.1 m³/h
(3.5315 ft³/h)- Process temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)- Process pressure
Max.: 250 bar
(3,625.94 psi)Min.: 0 bar
(0 psi)- Repeatibility
0.05 %
Description
For applications in even the most challenging conditions in the oil, petrochemical and chemical industries, we have developed our turbine flow meters in the VTR series.
The basic system in the VTR series comprises a rotor, the housing body and a measurement pick-up. Thanks to the specific internal diameter, the speed of the turbines is directly proportional to the flow.
All flow meters in the VTR series are individually calibrated. A wide range of electronic evaluation and display units are also available to our customers.
Applications
Water-like substances
Water
Oils
Petrochemicals
Advantages of the VTR turbine flow meters
For a wide range of applications in even the most challenging conditions
Individual calibration of each flow meter
Large choice of nominal diameters between DN 50 and DN 100
Full stainless-steel design
Large temperature and pressure ranges
Catalogs
VTR turbine flow meter
8 Pages
VSE Flow measurement technology
30 Pages
VSE EF ECOFLOW gear flow meter
12 Pages
