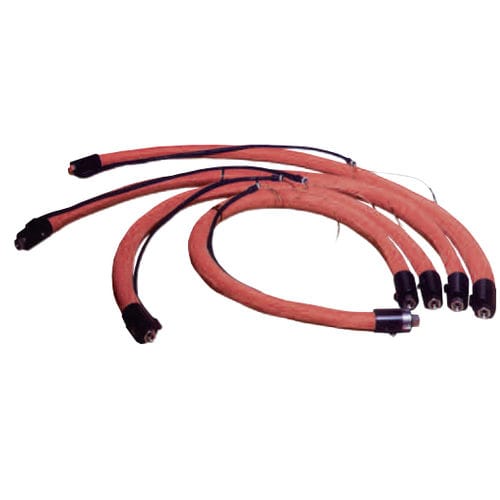

PTFE heated hose stainless steel
Add to favorites
Compare this product
Characteristics
- Other characteristics
- PTFE, stainless steel
- Operating temperature
200 °C, 350 °C
(392 °F, 662 °F)
Description
Inside nominal diameters ( mm) : ND 6 to ND 25.
Interior lining of PTFE (200°C max. or stainless steel of about 350°C max.).
Exterior lining tolerating 170°C max.
Minimum of the neutral fiber curve radius : 20 x ND (mm) for PTFE and 16 x
ND (mm) for stainless steel.
Length between ends : from .
Tolerance on Length = +/- 2%.
Standard power supply voltage : 230 VAC 1 P
Maximum power : 3600 W.
Dielectric strength : 1800 V. Insulation resistance : 100 Megohms.
Power supply cable length : 0,5 m to 5 m.
