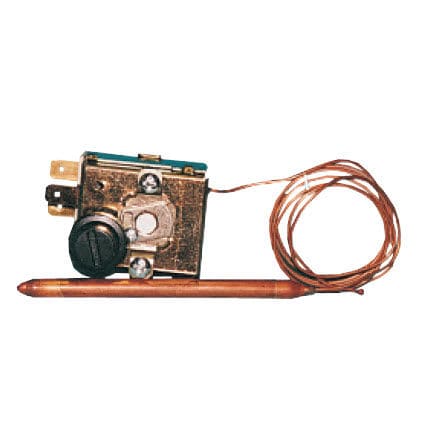

Capillary thermostat 9030-31adjustablemanual reset
Add to favorites
Compare this product
Characteristics
- Heating technology
- capillary
- Type
- adjustable
- Other characteristics
- manual reset
- Temperature
Max.: 110 °C
(230 °F)Min.: 90 °C
(194 °F)- Switching power: current
15 A
- Switching power : voltage
230 V
Description
Designed to protect water-heating installations against overheating, these temperature cut-outs are adjustable between 90° to 110°C and are manually reset. They are fitted with a 1m long capillary and a 6,5x90 mm bulb. Circuit is open if the sensor is broken. Single-pole normally close contacts, breaking capacity 15A at 230V.
