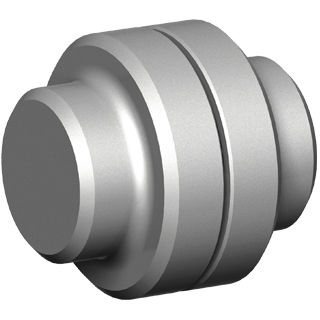

Flexible coupling FLEXOMAX G shaftcompactcompensating
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Product applications
- shaft
- Construction
- compact
- Other characteristics
- compensating
- Installation system
- flange
- Torque
Max.: 48,600 Nm
(35,845.5205 ft.lb)Min.: 20.5 Nm
(15.12 ft.lb)- Rotational speed
Max.: 12,500 rpm
(78,539.82 rad.min-1)Min.: 1,200 rpm
(7,539.82 rad.min-1)
Description
The FLEXOMAX G is a torsionally flexible coupling fitted with compressible flexible elements. The coupling’s flexibility compensates axial, radial and angle displacements between coupled shafts, absorbing rotational impacts and torsional vibrations from drive or working machines. The rubber flexible element withstands dirt, water, oil and harsh atmospheric conditions.
The FLEXOMAX G is available in 18 sizes and different designs with a capacity of up to 97.20 kNm and shaft diameters of up to 250 mm.
Benefits
Simplified assembly
Quick and safe installation
Lubrication-free
Compensates axial, radial and angled shaft displacement
Low maintenance coupling
Protects the drive section from impact loads
