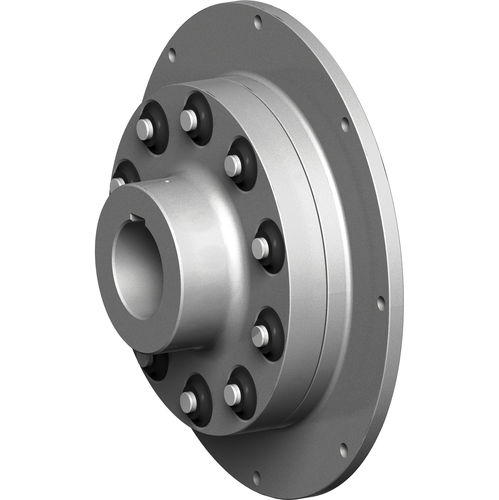

Flexible coupling PINOFLEX shaftmotorflange
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Product applications
- shaft, motor, flange
- Construction
- flywheel
- Installation system
- flange
- Torque
Max.: 8,730 Nm
(6,438.9176 ft.lb)Min.: 1,320 Nm
(973.582 ft.lb)- Rotational speed
Max.: 3,150 rpm
(19,792.03 rad.min-1)Min.: 1,650 rpm
(10,367.26 rad.min-1)
Description
Torsional flexible coupling with plug-in flexible elements composed by single pins
(Area of) Applications
High speed shaft of machinery driven by electric motor requiring a short installation length.
Efficiency
Plug-in design with minimum built-in length of the coupling
Possibility of removing the elastic elements without having to disconnect the machinery
High shock loads damping capacity
Tailor-made Solutions
Shaft to shaft or shaft to flange connection design available on request
Shaft to flywheel J620 SAE 8-14 inches available on request
Extra short installation design available on request
Design
Low number of components
Modular design of the elastic elements
Easy to install
