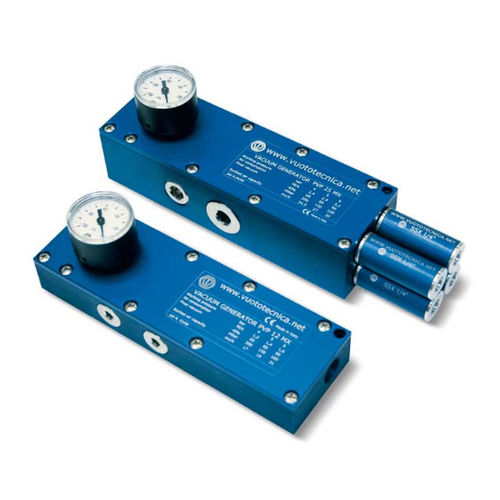

Multi-stage Venturi ejector PVP MX seriesstainless steel
Add to favorites
Compare this product
Characteristics
- Number of stages
- multi-stage
- Other characteristics
- stainless steel
- Ultimate vacuum
Max.: -30,000 Pa
(-4.35 psi)Min.: -90,000 Pa
(-13.05 psi)- Flow rate
Max.: 34 m³/h
(1,200.7 ft³/h)Min.: 16 m³/h
(565.03 ft³/h)
Description
This range of multiple ejector vacuum generators offers increased suction flow rate, given the same compressed air consumption, than single-stage models.
Supply pressure goes between 4-6 bar, for items MX and between 1-3 bar, for MXLP. The capacities go from 10.5 to 31 m3/h. They are fully made with anodised aluminium, with stainless steel ejectors and screws. The EPDM seals, the silicon reed valves and the vacuum gauge are provided as standard. They are equipped with additional intake connections for increased points of usage or control tools.
The suctioned air discharge connections are threaded to allow for installation, upon request, of “free-flow” SSX high sound damping silencers.
