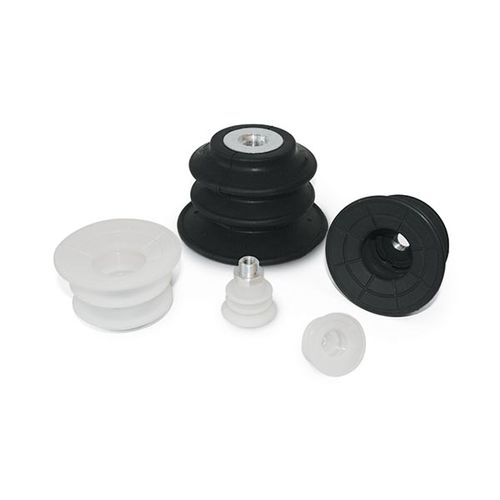

Vacuum suction cup for heavy-duty applications 013527
bellowscircularsilicone

vacuum suction cup for heavy-duty applications
vacuum suction cup for heavy-duty applications
Add to favorites
Compare this product


Characteristics

Type
bellows, circular
Material
rubber, anodized aluminum, silicone
Applications
for heavy-duty applications, for cardboard boxes
Other characteristics
double
Diameter

37 mm, 55 mm, 80.5 mm, 119 mm
(1.46 in, 2.17 in, 3.17 in, 4.69 in)

Weight of the suction cup

Max.: 224 g
(7.9 oz)

Min.: 12.9 g
(0.46 oz)

Description

Vacuum cups with two bellows for heavy-duty packaging Specifically designed vacuum cups for tripping and handling particularly heavy boxes and cardboard packaging in general. Their thick, sturdy lip absorbs tears and sudden accelerations, typical of robotised movements. The double bellows enables improved adaptability to the gripping surface, even if not perfectly perpendicular to the axis of the vacuum cup, and can recover evident unevenness of the loads to be lifted. The supports, all made of anodised aluminium, are equipped with a male or female central threaded pin to allow suctioning and clamping to the automation. The vacuum cups can be fitted on them without the aid of adhesives. To replace, simply request the single vacuum cup indicated in the table in the desired compound.
