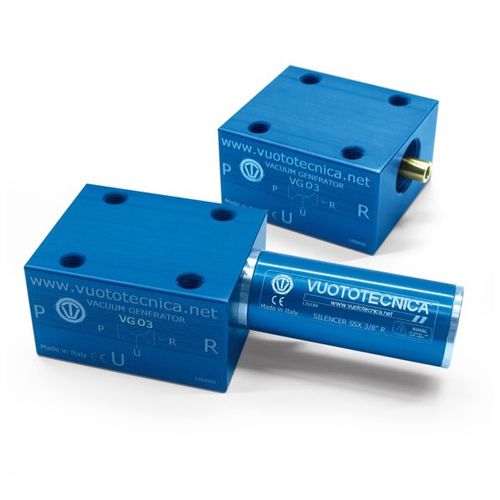

Single-stage Venturi ejector VG series

Single-stage Venturi ejector - VG series - VUOTOTECNICA
Single-stage Venturi ejector - VG series - VUOTOTECNICA
Add to favorites
Compare this product


Characteristics

Number of stages
single-stage
Ultimate vacuum

Min.: -85,000 Pa
(-12.33 psi)

Max.: -40,000 Pa
(-5.8 psi)

Flow rate

Min.: 2.7 m³/h
(95.35 ft³/h)

Max.: 5 m³/h
(176.57 ft³/h)

Description

This series of single-stage vacuum generators, also based on the Venturi principle, can be supplied for optimal supply pressures of 4 or 6 bars. Thanks to their shape, they can be installed directly on the user device and used at the most suitable supply pressure, depending on the desired level of vacuum. They have different capacities and can be used in all gripping systems with vacuum cups, for gripping and handling objects that are not very porous and on equipment with limited capacities. They are available upon request with an SSX 3/8" R high sound suppression silencer, installed on air exhaust R. They are fully made with anodised aluminium, with brass or aluminium ejectors, depending on the items.
