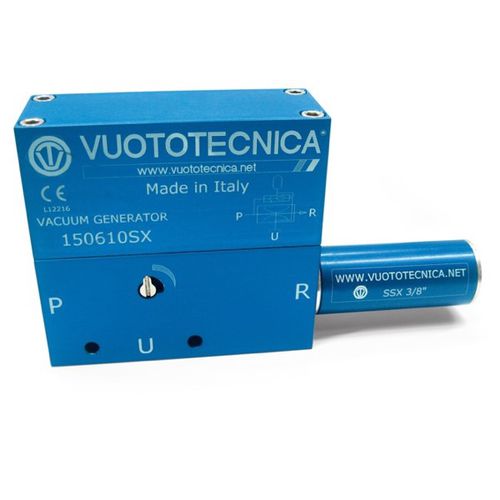

Single-stage Venturi ejector 150608SX

single-stage Venturi ejector
single-stage Venturi ejector
Add to favorites
Compare this product


Characteristics

Number of stages
single-stage
Ultimate vacuum

Min.: -90,000 Pa
(-13.05 psi)

Max.: -40,000 Pa
(-5.8 psi)

Flow rate

Min.: 8 m³/h
(282.52 ft³/h)

Max.: 12.5 m³/h
(441.43 ft³/h)

Description

These have the same technical features as 15 05 08 SX and 15 05 10 SX, with the addition of the pneumatic ejector. For the ejection system, air accumulated in a special chamber inside the generator body during the operating cycle is automatically discharged in connection to use U, once supply in P is completed and suitably dosed by means of a screw-type flow regulator, for quick restoration of the atmospheric pressure. Optimal supply pressure is less than 4 bar. A high acoustic dampening silencer, set on exhaust air discharge R, reduces noise to a minimum and is an integral part of the generator. These generators, like the previous ones, are also fully made with anodised aluminium.
