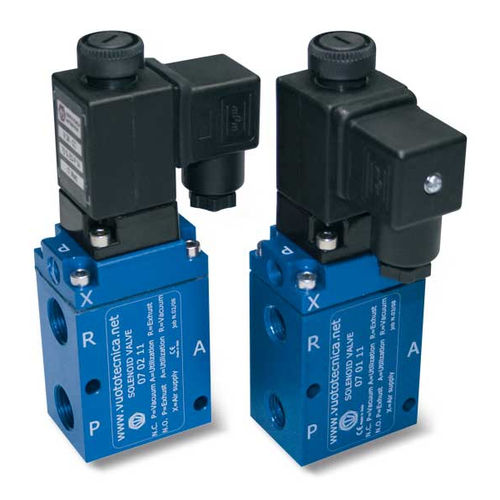

Pilot-operated solenoid valve 070x11 series
3-wayNONC

Pilot-operated solenoid valve - 070x11 series - VUOTOTECNICA - 3-way / NO / NC
Pilot-operated solenoid valve - 070x11 series - VUOTOTECNICA - 3-way / NO / NC
Pilot-operated solenoid valve - 070x11 series - VUOTOTECNICA - 3-way / NO / NC - image - 2
Pilot-operated solenoid valve - 070x11 series - VUOTOTECNICA - 3-way / NO / NC - image - 3
Pilot-operated solenoid valve - 070x11 series - VUOTOTECNICA - 3-way / NO / NC - image - 4
Pilot-operated solenoid valve - 070x11 series - VUOTOTECNICA - 3-way / NO / NC - image - 5
Pilot-operated solenoid valve - 070x11 series - VUOTOTECNICA - 3-way / NO / NC - image - 6
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
3-way
Function
NC, NO
Medium
air
Body
IP65, IP54, anodized aluminum
Other characteristics
diaphragm, spring
DN

Min.: 0.25 in

Max.: 1.5 in

Temperature

Min.: -5 °C
(23 °F)

Max.: 60 °C
(140 °F)

Pressure

Min.: 0.5 mbar
(0 psi)

Max.: 3,000 mbar
(43.5 psi)

Description

Servo-controlled 3-way vacuum solenoid valves The 3-way vacuum solenoid valves in this series are 2-position valves with pneumatically servo-controlled conical shutters. They can be used normally either closed or open. They are composed of an anodised aluminium body, two Vulkollan® shutters assembled onto a stainless steel stem, a membrane for servo-control made with special compounds and a thrust spring for the shutter return; an actuator activated by an electric coil managed the compressed air supply. These valves allow reducing frictions and internal dynamic stresses to the minimum. The result being a high response speed and a guarantee of long lasting duration. The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650). Protection degree IP 54; IP 65 for inserted connector. Allowed tolerance on the voltage nominal value: ±10%. Max. absorption: 20 V.A. in c.a. e 18 W in c.c. The electric coil can be rotated by 360°. The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal. 3-way vacuum solenoid valves are usually used for intercepting vacuum on feeders and cup stackers, robots, sheet feeders, sack openers and in all those cases where a quick response is needed between suction and the air inlet into the circuit, for a quick restoration of the atmospheric pressure.

Catalogs

No catalogs are available for this product.

See all of VUOTOTECNICA‘s catalogs
