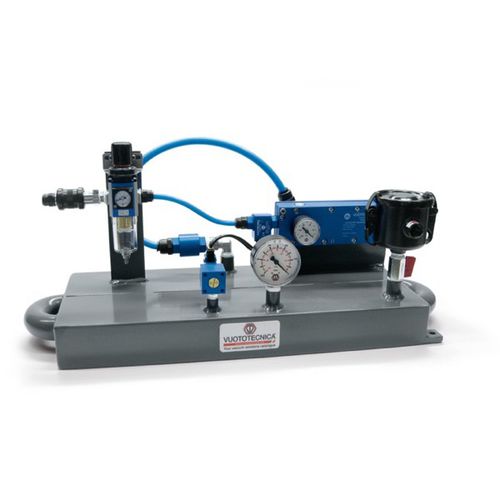

Dry vacuum unit DOP series

industrialautomaticmini

Mini pneumatic pump sets are small independent vacuum-producing units, exclusively supplied with compressed air, with reduced size. They are composed of: - A small welded sheet steel tank - A shut off valve to intercept compressed air - A pressure regulator with filter and pressure gauge - A compressed air vacuum generator - A pneumatic drive valve for supplying the vacuum generator operated by the vacuum switch - A pneumatic vacuum switch for adjusting the level of vacuum - A vacuum gauge for reading the level of vacuum - A manual valve for vacuum interception - A suction filter with FC series paper cartridge - A cock for condensation drainage from the tank The level of vacuum, preset via the mini vacuum switch is automatically maintained in the tank.Mini pneumatic pump sets are suited for equipping fixed or mobile working units that require vacuum, such as: - Trolleys with vacuum cups for fixing and transporting glass and crystals. - Vacuum clamping systems for ski maintenance, marble drilling and processing, for polishing objects in pewter, copper, silver, etc. - Hoists with vacuum cups for lifting television sets and household appliances in general, for glass installation in door and window frames, for feeding sheet metal into presses, etc. The mini pneumatic pump sets do not require any electrical current but only compressed air at 4-6 bar pressure. Recommended in working environments where ignition sources could cause a fire hazard.
