Vacuum oven

chamberdryingcuring

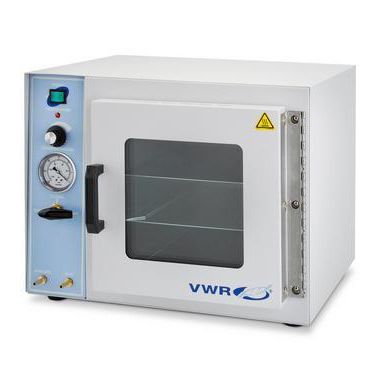

The 12.5 L unit features a top-mounted independent evacuation and venting vacuum fittings. • Heating system optimizes chamber space for drying, curing, vacuum embedding, and plating applications • Polycarbonate safety shield protects door glass • Built-in over-temperature protection • Vacuum level is displayed on gauges from 0 to 30 in Hg • Corrosion-resistant stainless-steel tubing for long-term performance • With two removable stacking aluminum shelves • Easy-to-clean Type 304 stainless-steel interior chamber • Powder-coated heavy-gauge steel exterior for durability • Two-year warranty with extended warranty packages available The 19.8 L and 65.1 L units feature a front-mounted three-way valve for evacuation, venting and purging of inert gases (e.g., Nitrogen or Argon) with vacuum fittings on the front of the unit. 7.6 cm (3") glass wool insulation prevents heat loss. Silicone door gasket and positive latch door maintain seal at all vacuum levels. VWR® Signature™ Vacuum Oven Station has a programmable Watlow temperature controller, that offers multiple ramp and soak capabilities, including storing and running up to 40 temperature profiles. • Large 264 L (9.3 cu. ft.) capacity • LED digital control • VWR Two-Year Limited Parts and Labor Warranty The controls are easily adjustable and the control panel is user-friendly The oven chamber is wrapped in high temperature insulation which aids overall performance and promotes energy efficiency. Powder coat construction, true vacuum valves and cross-flow ventilation through the oven chamber enhance total performance.
