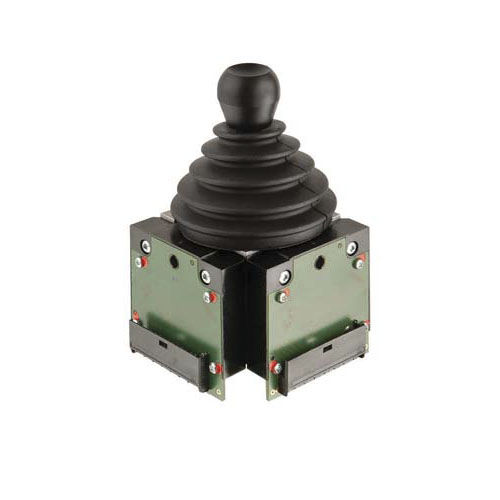

Multi-axis joystick V14

potentiometermicro-switchfor remote control

• Industial joystick for remote control • Mechanical life up to 6 million operating cycles • Degree of protection up to IP65 • Modular design, therefore very flexibly applicable • Combinable with many Gessmann-grips • Encoder with integrated conductive-plastic potentiometer • Contacts 2A 250V AC15 • Detent points and end position latching available • With spring return or friction brake The V14 is a robust switching device for remote control and electro-hydraulic applications. Due to its modular design, this control unit can be used universally. The integrated sensor system has signal and potentiometer tracks in conductive plastic technology. Switching contacts are also available as an option. • Mechanical life V14 : 6 million operating cycles • Operation temperature : -40°C to +85°C • Degree of protection : up to IP65 Contacts • 2A 250 V AC15 • Case clamp ® connection • 6 contacts per axis Encoder • Potentiometer resistence: • 2 x 5 kOhm • 2 x 10 kOhm • 6 bit gray code Current output • 20…0…20 mA • 20…4…20 mA • Supply voltage 18-30 V Voltage output • 10…0…10 V • Supply voltage 18-30 V • Hall-Potentiometer • 0,5…2,5…4,5 V Characteristic: • dual or • inverse dual • Supply voltage 5 V DC • Features • Spring return • Friction brake • Latching max. 6-steps • Deflection angle max. +/-40 degree • End-position latching
