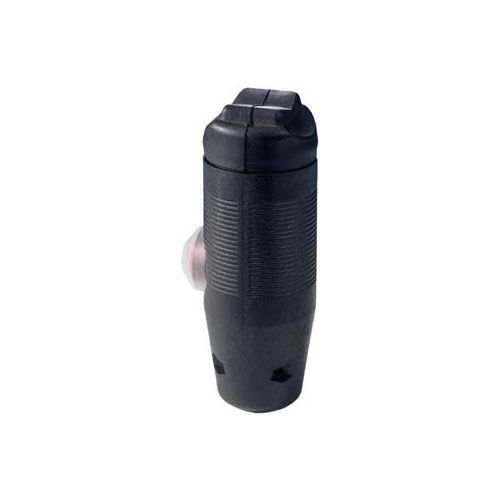

The Palm Grip B5 has different equipment options for many requirements. It is compatible with our Multi-axis controller or mounted on Hydraulic drives. The Palm Grip has a highly flexible single wire (4 respectively 8 x 0,25 mm², 450 mm long). The mounting piece can be supplied with a tapped hole M10 (standard) or M8.
Technical data
Operating temperature -40°C to +85°C
Degree of protection IP54
Contact complement 3A 24 V DC13 (1,5A 24 V DC13)
