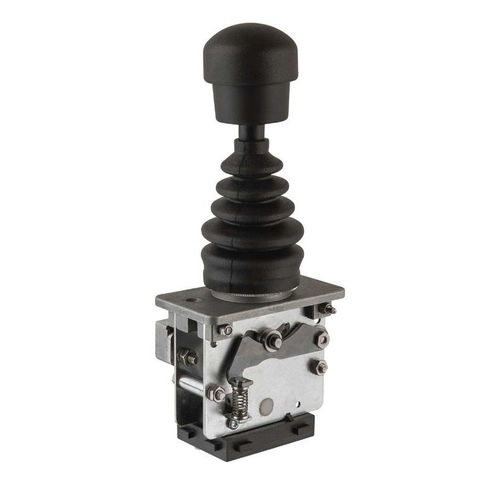

Single-axis joystick S26
IP67IP54

single-axis joystick
single-axis joystick
Add to favorites
Compare this product


Characteristics

Technology
single-axis
Protection level
IP67, IP54

Description

The Single-axis Controller S26 is a hall sensor switching device designed for electro-hydraulic and remote controlled hydraulic. The modular design of the switching device is universally applicable. – Mechanical life up to 6 million operating cycles – PL d compatible (DIN EN ISO 13849, complies SIL 2 according to DIN EN IEC 61508) – Degree of protection up to IP67 – Many common el. interfaces available – Contactless hall-technology – Detent points available – With spring return or friction brake Voltage output • 0,5…2,5…4,5 V Us= 5 V / 9-32 V • 0…5…10 V • 10…0…10 V • SIL 2 / PL d able Current output • 0…10…20 mA • 4…12…20 mA • 20…0…20 mA • 20…4…20 mA • SIL 2 / PL d able Features • Spring return • Friction brake • Detent points • Deflection angle 37,5 degree Technical data • Mechanical life V26 : 6 million operating cycles • Operation temperature : -40°C to +85°C • Degree of protection : up to IP54, electronic assembly IP67 • Functional safety : PLd compatible (EN ISO 13849, complies • SIL2 to DIN EN IEC 61508)
