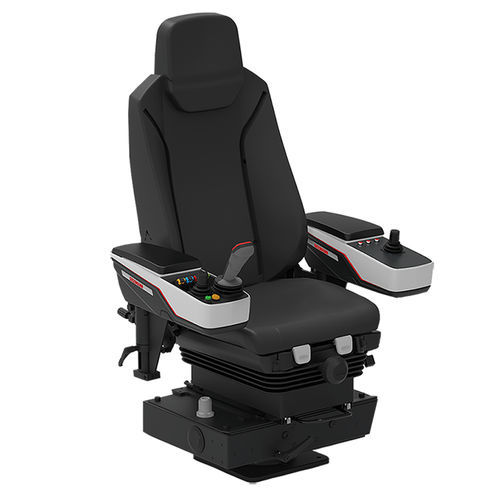

Swivel operator seat KST31

for crane

The KST31 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort. The consoles, mounted to the driver’s seat, swing with the seat. The consoles can be positioned to perfectly match any person by means of length, height and inclination adjustment. The standard version includes: Consoles: The plastic consoles can be equipped with custom command and indicating devices. Driver’s seat: The comfortable driver’s seat KFS11 is equipped with a spring loaded hydraulic vibration absorption system, including weight adjustment, air-permeable textile cover, arm rests and head rest. Cross-member with swivel base: The cover of the sheet steel cross-member including the driver’s seat is forward foldable. Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance. Swivel base has zero-tolerance bearings and rotation can be locked in 3° steps. Surface treatment Base coat and textured varnish Standard colour RAL 7035 light grey in combination with RAL 7016 anthracite
