Changeover switch NU 1cammultipolerobust
Add to favorites
Compare this product
Characteristics
- Type
- cam
- Number of poles
- multipole
- Protection level
- robust, IP65, IP40
- Other characteristics
- DC, changeover, adjustable, high-voltage, aluminum, electromechanical
- Primary current
Max.: 10 A
Min.: 1 A
- Voltage
30 V, 50 V, 125 V, 250 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description

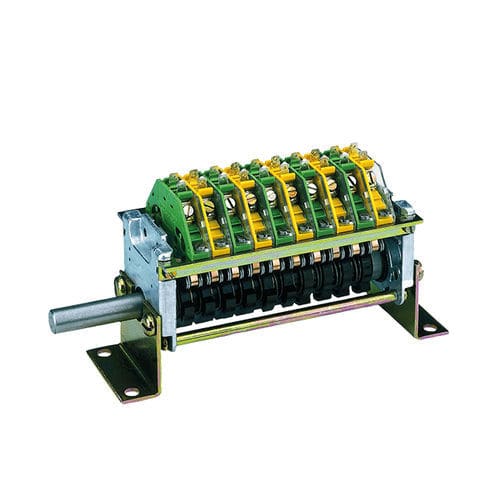

The Cam Controller NU 1 is used as a signal and annunciation switch in HV systems. This rugged switching device has cam discs made of insulation material that can be set at 10° intervals. The DC contact blocks are designed to permit series assembly, which can be operated simultaneously.
• Mechanical life NU1 : 2 million operating cycles
• Degree of protection : IP40 / IP65 with aluminium housing
