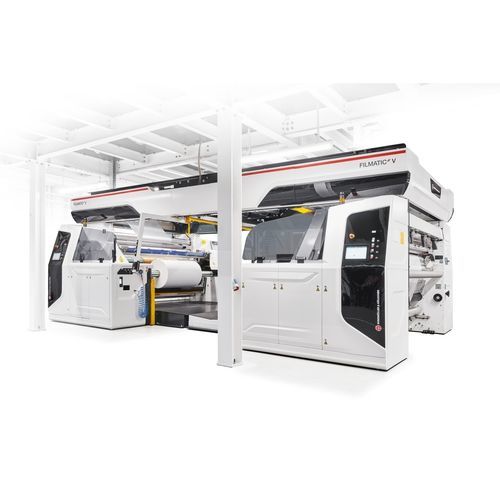

Film winder FILMATIC II V

automaticfor extrusion lines

The new blown film winder for Varex ll. In addition to the well known features, the surface winder offers safe and easy handling and maxium roll quality by surface winding from cut to cut. Safe and easy operations surface, center and gap winding Reverse winding 90° cut with unique vacuum-cutover-drum technology Intuitive HMI Singe point of semi-automatically handling for Roll and winding shaft web threading aid for face-2-face and back-2-back layout available Easily retrofitable due to modular system Reproducible winding settings Compatible to TURBOSTART and EASY-2-Change Film widths - 1300 – 3600 mm (51 – 142") Film thickness - 20 – 250 μm (0.8 – 9.8 mil) Roll diameter max. - 1200 mm (47") Core i.d. - 76 – 152 mm (3 – 6") Speed max. - 300 m/min (984 ft/min)
