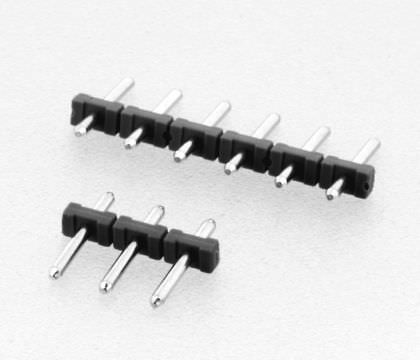

Male pin header 300 V, 10 A, 5 mm | 823 series single-rowthrough-hole5.00 mm (0.197")
Add to favorites
Compare this product
Characteristics
- Type
- male
- Form
- single-row
- Other characteristics
- through-hole
- Pitch
- 5.00 mm (0.197")
Description
Pin Headers, 5.00mm Pitch, Straight - 1.30mm Round Contacts
Insulator Thermoplastic, rated UL94 V-0
Contact Material Ø1.30mm round pin, copper alloy
Solderability IEC 60512-12A
Contact Resistance 1000MΩ
Test Voltage 1.5kVAC
Voltage Rating 300VAC
Current Rating 10A
Temperature Range -40°C ... +115°C
Processing Wave soldering
