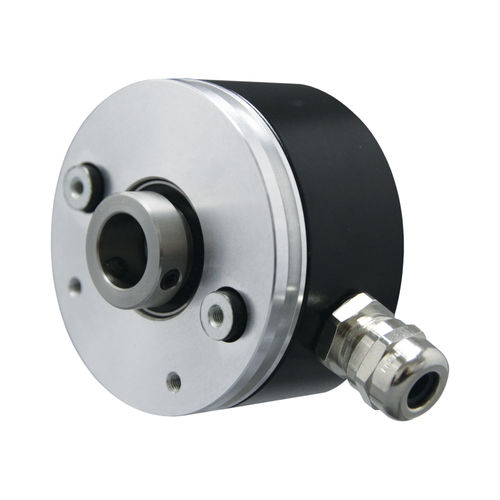

Incremental rotary encoder IH580hollow-shaftflangeRS-422
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- hollow-shaft, flange
- Output signal
- RS-422
- Material
- stainless steel
- Incremental encoder résolution (pulses per revolution
Min.: 1 unit
Max.: 10,000 unit
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 14 mm
(0.55 in)
Description
Incremental encoders have a defined number of pulses per revolution (PPR). The output signals are the signals A and B shifted by 90 electrical degrees as well as the reference pulse Z. These signals as well as the inverted signals are available in different configurations. RS422 (TTL) or Push-Pull (HTL) are the most common variants as driver output. Incremental encoders are particularly suitable for determining speed, angle or distance measurements
Size: Ø 58 mm
Signals: A, /A, B, /B, Z, /Z
Supply voltage: 4.75-30 VDC
