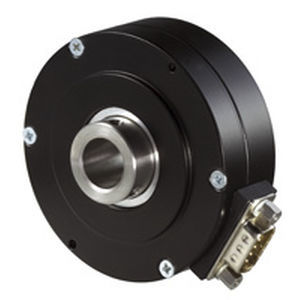

Absolute rotary encoder AH740hollow-shaftRS-422parallel
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Construction
- hollow-shaft
- Output signal
- RS-422, parallel
- Supply voltage
- 5 VDC, 8VDC
- Material
- aluminum, stainless steel
- Protection level
- IP65
- Other characteristics
- compact, heavy-duty, flat
- Shaft diameter
Max.: 14 mm
(0.55 in)Min.: 6 mm
(0.24 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
200 kHz
- Process temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
Absolute rotary encoders are also called absolute value encoders. In contrast to incremental rotary encoders, these absolute encoders have a unique digital code. This allows each angular position to be assigned a unique value. No initial calibration is therefore required. Even after a power failure or when switched off, the absolute position is maintained.
Single-turn encoders have a measuring range of 360 degrees (one revolution). Compared to incremental rotary encoders, we have a variety of interfaces such as parallel, SSI, Canopen, CAN SAEJ1939, RS485, Profibus, Profinet, Ethercat, Biss-C and analog output.
Size: Ø 74 mm
Resolution: 1 – 13 bits
Coding: Binary, Gray
