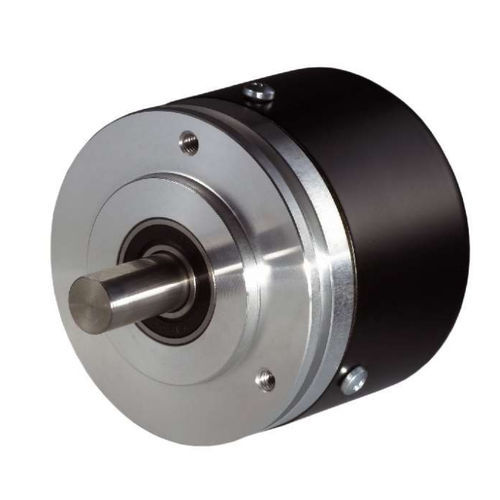

Absolute rotary encoder MS580single-turnmulti-turnblind-shaft
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Construction
- blind-shaft, single-turn, multi-turn, synchro-flange
- Output signal
- RS-485, SAE J1939, SSI, CANopen, ProfiNet, EtherCAT, PROFIBUS
- Supply voltage
- 5 VDC, 8VDC
- Material
- aluminum, stainless steel
- Protection level
- standard, IP65
- Applications
- industrial
- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 12 mm
(0.47 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
In addition to the angular steps per revolution, multiturn encoders also record several revolutions. An internal reduction gear is connected to the drive shaft, through which the number of revolutions is recorded. Alternatively, this can also be determined electronically.
The measured value for multiturn encoders is made up of the angular position and the number of revolutions. The recorded measured value is also calculated and, depending on the interface, output via different interface modules. The interfaces available here are: SSI, Canopen, CAN SAE J1939, RS485, Profibus, Profinet, Ethercat, Biss-C.
Size: Ø 58 mm
Coding: Binary, Gray
