Incremental rotary encoder IH103
hollow-shaftRS-422aluminum

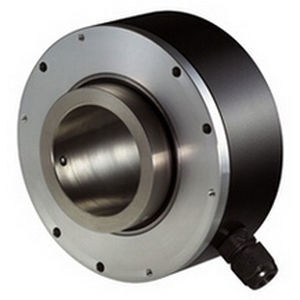

Incremental rotary encoder - IH103 - W+S Meßsysteme GmbH - hollow-shaft / RS-422 / aluminum
Incremental rotary encoder - IH103 - W+S Meßsysteme GmbH - hollow-shaft / RS-422 / aluminum
Add to favorites
Compare this product


Characteristics

Type
incremental
Construction
hollow-shaft
Output signal
RS-422
Material
aluminum, stainless steel
Protection level
robust, IP65
Other characteristics
heavy-duty
Shaft diameter

Min.: 30 mm
(1.18 in)

Max.: 45 mm
(1.77 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Output frequency

300 kHz

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 100 °C
(212 °F)

Description

Incremental encoders have a defined number of pulses per revolution (PPR). The output signals are the signals A and B shifted by 90 electrical degrees as well as the reference pulse Z. These signals as well as the inverted signals are available in different configurations. RS422 (TTL) or Push-Pull (HTL) are the most common variants as driver output. Incremental encoders are particularly suitable for determining speed, angle or distance measurements Size: Ø 103 mm Signals: A, /A, B, /B, Z, /Z Supply voltage: 4.75-30 VDC
