Drying oven OVD Series
cabinetelectricvacuum

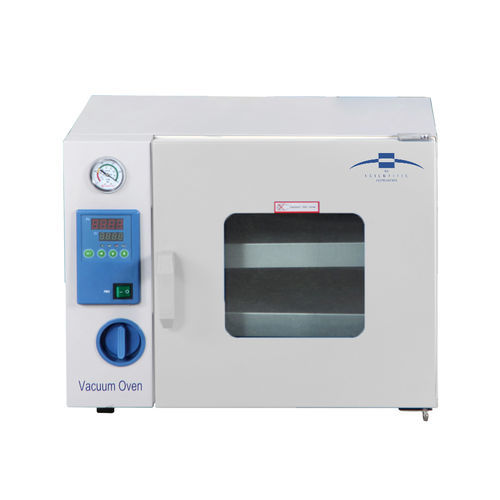

Drying oven - OVD Series - WA Scientific Instruments - cabinet / electric / vacuum
Drying oven - OVD Series - WA Scientific Instruments - cabinet / electric / vacuum
Add to favorites
Compare this product


Characteristics

Configuration
cabinet
Function
drying
Heat source
electric
Atmosphere
vacuum
Other characteristics
stainless steel, digital, laboratory
Maximum temperature

Min.: 5 °C
(41 °F)

Max.: 200 °C
(392 °F)

Capacity

12 l, 30 l, 52 l
(3.17 gal, 7.93 gal, 13.74 gal)

Width

500 mm, 600 mm, 730 mm
(19.69 in, 23.62 in, 28.74 in)

Height

410 mm, 450 mm, 550 mm
(16.14 in, 17.72 in, 21.65 in)

Depth

375 mm, 490 mm, 560 mm
(14.76 in, 19.29 in, 22.05 in)

Description

OVD Series Vacuum Drying Ovens • Ideal for carefully controlled processing such as desiccating and vacuum drying. • Electronic temperature controlled by PID microprocessor and PT 100 probe, one ramp. • Stainless steel chamber with rounded corners for easy cleaning. • Powder coated steel exterior. • Double safety glass door in case of implosions or explosions provides maximum protection. • Three-way valve allowing easy evacuation, purging, and venting. • Visual alarm “over-temp” thermostat and manual reset. • Analogue pressure gauge. • Fibreglass thermal insulation. • Two stainless steel wire shelves included.
