Absolute rotary encoder WDGA 58D
magnetic16-bit32-bit

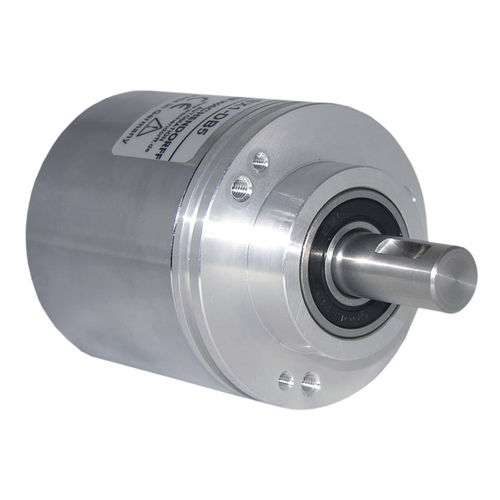

Absolute rotary encoder - WDGA 58D - Wachendorff Automation GmbH & Co. KG - magnetic / 16-bit / 32-bit
Absolute rotary encoder - WDGA 58D - Wachendorff Automation GmbH & Co. KG - magnetic / 16-bit / 32-bit
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
magnetic
Absolute encoder resolution
16-bit, 32-bit
Absolute encoder revolution number
16-bit, 32-bit
Construction
solid-shaft, single-turn, multi-turn, flange, sealed
Output signal
CANopen, CANopen LIFT
Supply voltage
24 Vdc, 12 Vdc, 15VDC, 32VDC
Material
steel
Protection level
maintenance-free, ultra-rugged, IP67, IP65
Other characteristics
galvanically-isolated
Housing diameter

58 mm
(2.28 in)

Shaft diameter

12 mm
(0.47 in)

Length

25 mm
(0.984 in)

Rotational speed

8,000 rpm
(50,265 rad.min-1)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

Absolute shaft encoder, magnetic, CANopen LIFT WDGA 58D Galvanic isolation; Heavy duty; Clamping flange; Communication Profile according to CiA 301 Application Profile CANopen Lift CiA 417; binary code Highlights • EnDra® maintenance-free and environmentally friendly • CANopen LIFT, Single-turn/Multi-turn • Communication Profile according to CiA 301 • Application Profile CANopen Lift CiA 417 • Single-turn/Multi-turn (16 bit / 32 bit) • Future-oriented technology with 32 Bit processor • 2-colour-LED as indicator for operating condition and error message appropriate CiA 303-3 • High shaft load up to 400 N radial, 400 N axial Product details Flange clamping flange steel case chrome-plated, magnetic shielding Resolution Single-turn Resolution 65,536 steps/360° (16 bit) Max. Permissible shaft loading radial: 400 N Max. Permissible shaft loading axial: 400 N Current consumption: typ. 100 mA Power consumption: max. 1 W Protection class Housing: IP65, IP67; shaft sealed: IP65
