Length measuring system LMSMA32

anglepowerforce

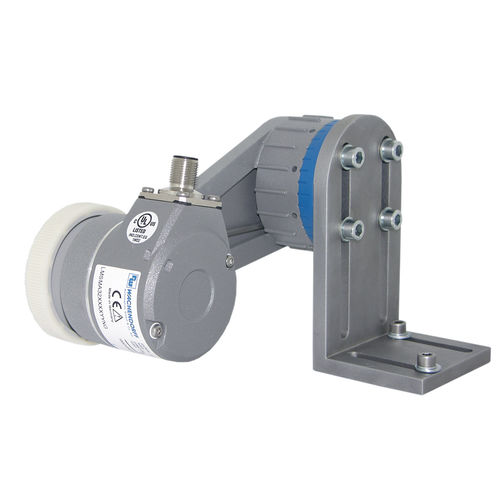

Robust length measurement system LMSMA32 Compact system with new spring-loaded arm, including WDGI 58B encoder, 200 mm measuring wheel and pre-assembled angle bracket Highlights • Excellent measuring results, thanks to a resolution of 0.008 mm/pulse • Suitable for many surfaces • Absorbent mounting • Contact pressure – easily adaptable by intelligent central adjustment • Easy to dismantle through pre-assembled angle bracket Product details Description The LMSMA32 measuring system is a perfectly tuned, pre-assembled complete system. Encoder Resolution WDGI 58B10 with: 200 PPR: 1 pulse/mm = 1.0 mm/pulse 2000 PPR: 10 pulses/mm = 0.1 mm/pulse 5000 PPR: 25 pulses/mm = 0.04 mm/pulse 25000 PPR: 125 pulses/mm = 0.008 mm/pulse Power supply/current consumption: 4.75 VDC up to 5.5 VDC: max. 100 mA 10 VDC up to 30 VDC: max. 100 mA Output circuit: TTL, HTL Channels: ABN + inverted signals Spring-loaded arm Adjustable prestressing force: 0 N up to 30 N in steps of 5 N Axis length: 120 mm Lock: Spring-loaded arm at 100 ° in output state (spring not loaded) Contact Pressure: Adjustable, resolution in 10 ° steps (corresponds to 5 N) Material: Die cast aluminum Measuring wheels Measuring wheels Ø = 200 mm LMSMA32-xxxx-yy-KH with measuring wheel MR200KH: Surface finish: Synthetic (Hytrel, smooth) Fields of application: Ungreased metal, steal profiles, painted surfaces, plastics, paper, pasteboard, wood, textiles, leather, wire. LMSMA32-xxxx-yy-KG with measuring wheel MR200KG: Surface finish: Synthetic (Hytrel, chequered) Fields of application: Ungreased metal, painted surfaces, plastics, paper, pasteboard, wood, textiles, glass, flooring.
